Analysis Models Power BI Logs

This section provides details on the available Log functionality. These Logs provide information on Parquet Data Source Refresh history, and Analysis Models Refresh Details which is useful when identifying execution errors and other details. Each log item is recorded based on the system events (i.e. service starting/ending logs, Model Refresh Duration), which can be grouped based on the selection (Analysis Model ID, Data Source ID, Process History ID, Load History ID) .

Log items can be grouped and displayed by using the Correlation ID when applicable. Example: If a data source is triggered from a specific Analysis Model refresh, it uses the same ID as for log messages that occur while doing the actual refresh of the Analysis Model.

Also, each log item indicates the system that created the log record, i.e. Data Pump, Scheduler along with the log details/message. The additional information can be exported as well.

Attribute	Description
Analysis Model	Related Analysis Model name
Data Source	Parquet data source name
Generated by	The system that created the log record, for example, Data Pump or the Scheduler
Message	Log message -summarized context
Details	In the details additional information can be viewed for further actions
Log created on	Created timestamp

Hidden Fields

Attribute	Description
Analysis Model ID	Related Analysis Model ID
Data Source ID	Related Data Source ID
Load History ID	Related Data Source Load History ID
Process History ID	Related Analysis Model Process History ID based on the Refresh Details
Correlation ID	ID that is used to correlate different Log entries

Analysis Model Process History

During the process of Analysis Model Publishing and Refreshing, log entries are created in the model process history. Navigating to the Analysis Models Power BI Logs can be done via the Analysis Models page by selecting the View Logs button.

Note

View Logs button is available for all the Analysis Model statuses except for the Not Published status.

Navigation from these View Logs buttons filters the Log items in the Analysis Models Power BI Logs page as below.

Selection	Results in Analysis Models Power BI Logs Page
View Logs button from Analysis Models list control view and Analysis Models details view	Logs are filtered based on the Analysis Model ID
View Logs button from Analysis Models Refresh details section	Logs are filtered based on the Process History ID

Analysis Models Power BI Logs provide Log details based on the service start/end time. All logs are available in Kubernetes for further action.

How to Navigate:

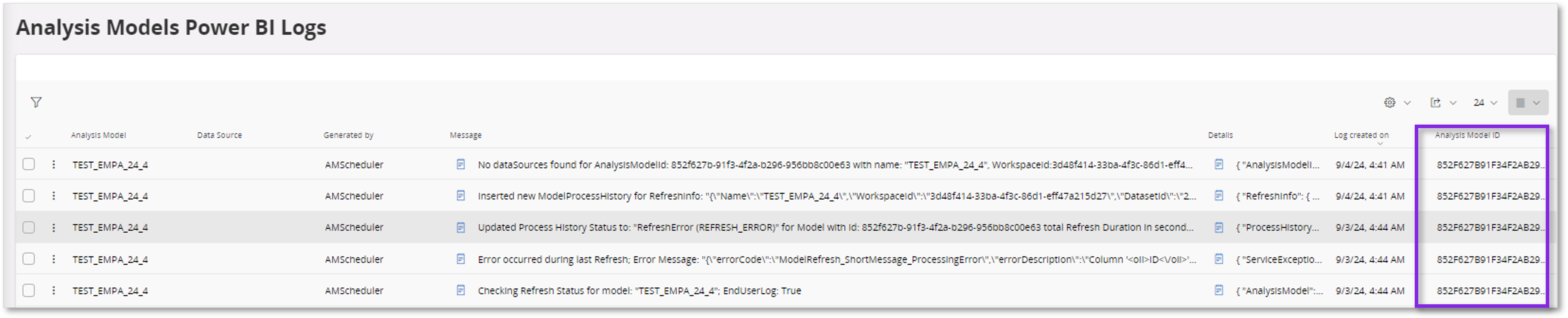

1. Click on the View Logs button from the Analysis Models page or from the Analysis Model Details page.

This filters log entries based on the Analysis Model ID.

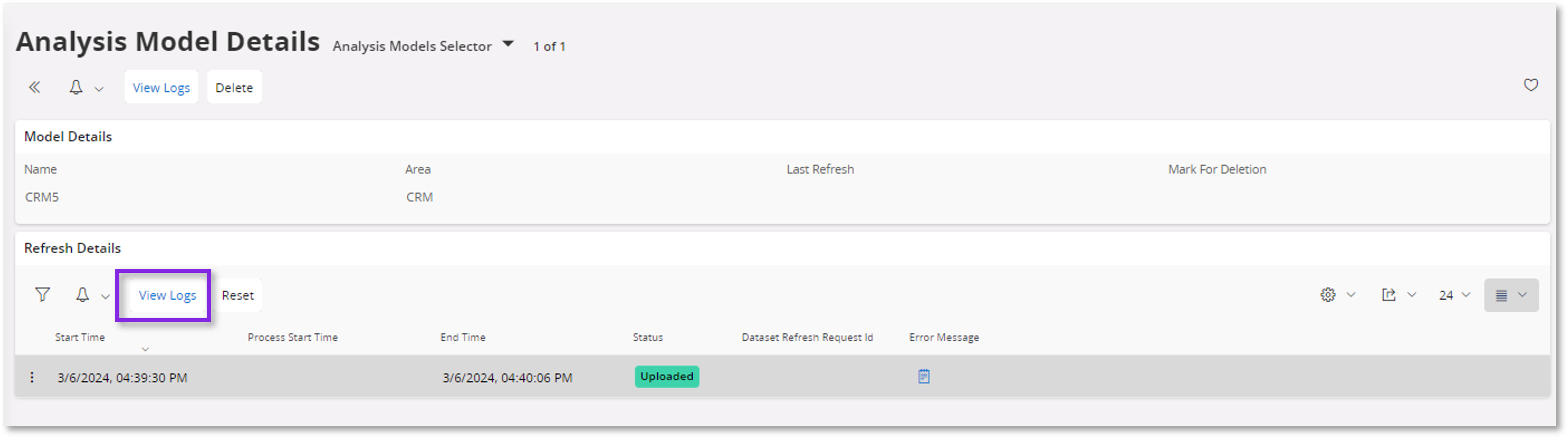

2.Click on the View Logs button from the Refresh Details section on the Analysis Model Details page.

This filters log entries based on the Process History ID.

Parquet Data Source Refresh History

During the process of the Parquet Data Source Loading and Refreshing, log entries are created in the Data Source Load History. Navigating to the Analysis Models Power BI Logs page can be done via the Parquet Data Sources page by selecting Parquet Data Source entries and selecting the View Logs button. Based on the selection, it filters the related log entries based on the Data Source ID and the Data Source Load History ID respectively.

Selection	Results in Analysis Models Power BI Logs Page
View Logs button from Parquet Data Sources list control view and Parquet Data Source details view	Logs are filtered based on the Data Source ID
View Logs button from Parquet Data Source Refresh History section	Logs are filtered based on the Load History ID

How to Navigate:

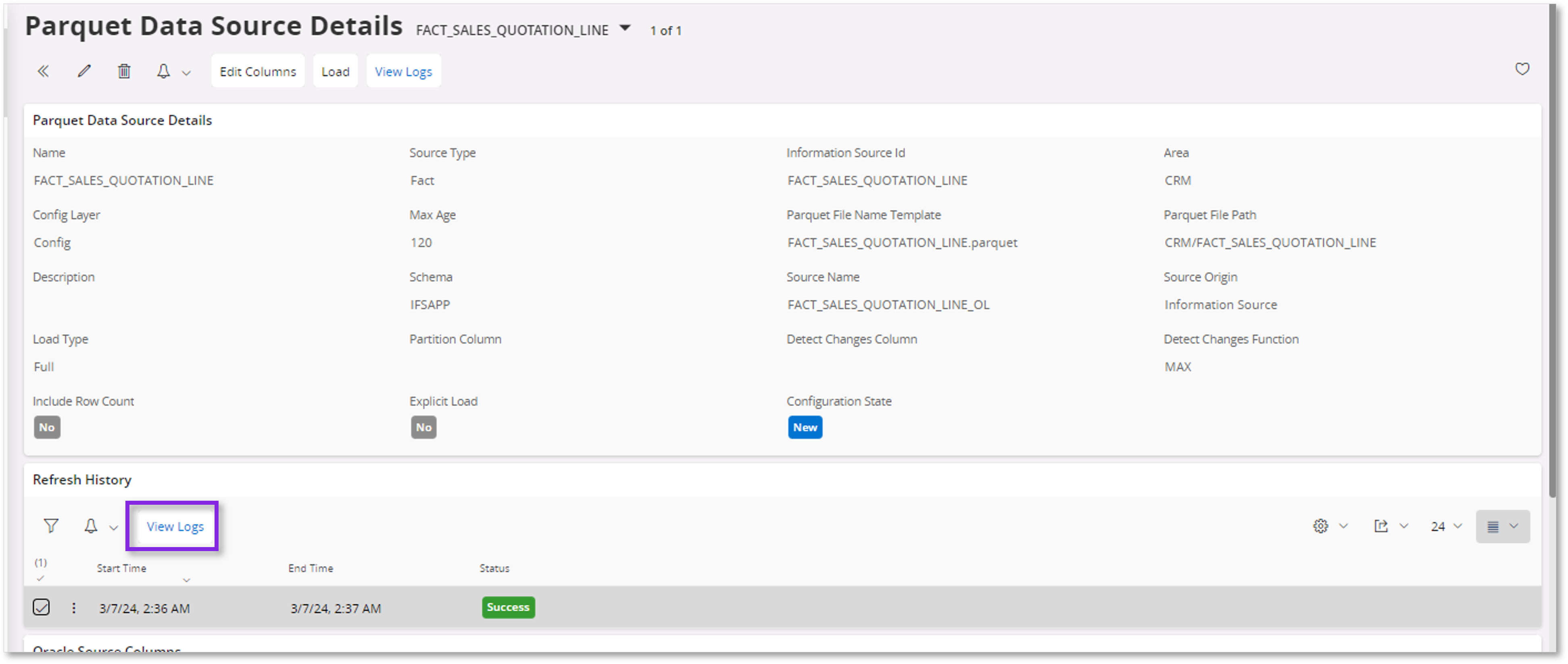

1. Click the View Logs button from the Parquet Data Sources page or the Parquet Data Source Details page

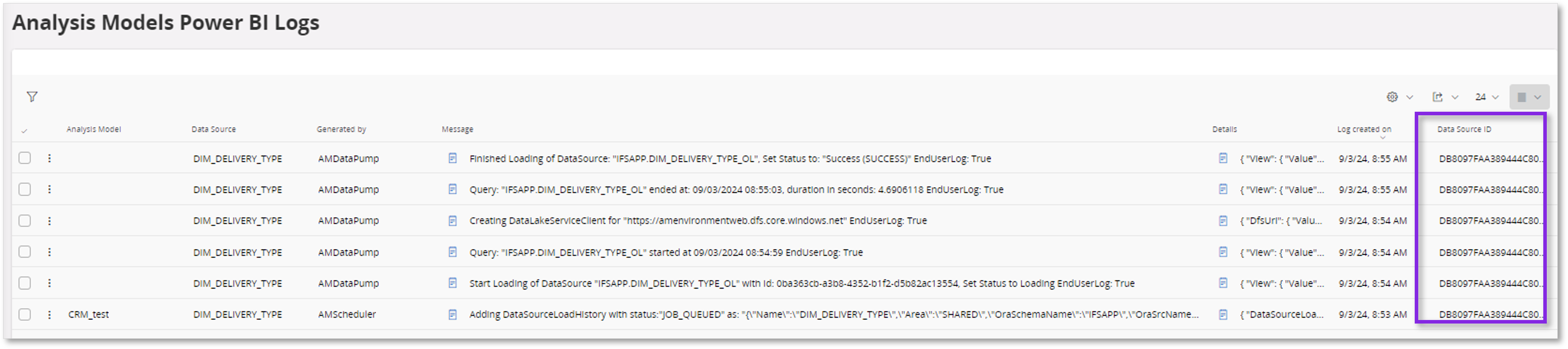

This filters log entries based on the Data Source ID.

2.Click on the View Logs button from the Refresh History section of the Parquet Data Source details view.

This filters log entries based on the Load History ID.
