Analysis Models - Data Configuration¶

This page provides information on how to define Analysis model-specific data configurations. These configurations are taken into account when the Analysis Models are processed. The purpose is to make sure that the Models work properly and provide a good user experience.

The configurations can be defined/changed via the IFS Cloud Web client and will be taken into account when the models are processed. Important to remember is that the configurations are represented by Data Sources of type Other, in most cases with an identity starting with the string " _LUP ". It must be made sure that these Data Sources are transferred regularly.

The data configurations are handled in the Data Configurations page under Analysis Models Configurations.

Please note that some configurations are not yet supported by delivered Analysis Models.

Reporting Period¶

IFS Cloud supports two dimensions that are based on Reporting Periods, DIM_RPD_PERIOD and DIM_RPD_COMPANY_PERIOD. Many of the Information Sources used by the Analysis Models have a relation to the dimension DIM_RPD_COMPANY_PERIOD, in the models named. To be able to properly use that dimension, it is necessary to configure what Reporting Period ID should apply for Information Sources in a special source category. There can be any number of Reporting Period definitions in IFS Cloud but to make the Analysis models useful, only one definition can be used,

It is recommended to always make sure that the Reporting Period is defined properly. For the Financial model, it is mandatory to set up this configuration.

The Source categories are predefined and the Reporting Period ID has a suggested value.

For each Source category, specify the Reporting Period ID to be considered by using a List of Values with available values. If the predefined value is used, make sure that the Reporting Period definition has been properly set up in IFS Cloud.

If the Source category is Financials, then the Master Company must be supplied. It defines the company to be used to find Reporting periods that are added to the REPORTING DATE dimension. Thus, only one company controls the Reporting periods, not each individual company.

Also, note that the Master Company represents the master company in the Group Consolidation Analysis model.

Reporting Currency Rate Type¶

A majority of the Analysis models support Reporting Currency, i.e. a way to recalculate amounts, originally represented in the company base currency, in any other currency by using a defined currency rate definition.

However, for the General Ledger (GL) model the currency calculations are a bit different. They are based on something called Cross Rates and any of the Currency Rate Types in the specified Company can be used for currency recalculations. Thus, for the GL model, the provided Currency Rate Type is not used.

Reporting Currency Rate Type Configuration must be defined properly.

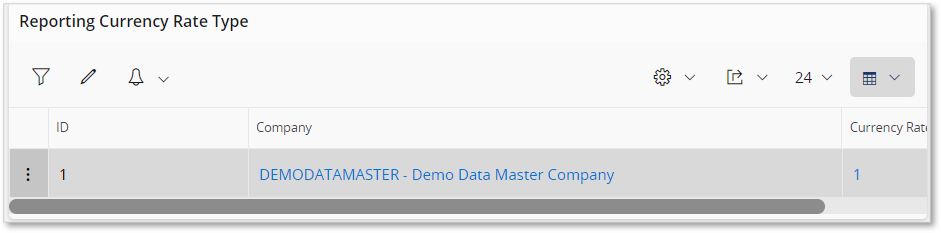

Configuration is provided in the **Reporting Currency Rate Type ** group.

The list has only one row and will show pre-defined template values.

Modify the suggested values appropriately.

Accounting Attribute¶

The General Ledger model supports accounting attributes, a functionality in Accounting Rules that provides the possibility to group code part values and represent the group as an attribute value. One Attribute has several Attribute Values and each Attribute Value relates to one or more code part values. The main use case for the GL model is to use the Accounting Attributes to define code part mappings that only exist in Group Consolidation and make these mappings available in the GL model where they will appear as separate tables.

It is possible to configure up to 5 separate Attributes for each code part, i.e. for Account and Code B to Code J.

Configuration is provided in the **Accounting Attribute ** group.

The field Attribute needs to be set for the attribute definitions to be considered in the model. A list of Values supports a distinct list of available Attributes for the actual code part.

Note

The configuration is company-independent which means that the attribute definitions in Accounting Rules need to be defined for all companies for which analysis/reporting based on accounting attributes in the GL model is planned.

Only one attribute definition for Account and Code B is by default visible in the GL model. To make use of more attributes, it will be necessary to perform a configuration to unhide needed attribute tables in the model. Configurations can also be used to give the attribute tables and the table columns more user-friendly names.

Accounting Structure¶

The General Ledger model supports accounting structures. The structures are defined in General Ledger where they are named Code Part Based Structures.

Configuration is provided in the **Accounting Structure ** group.

List of Values for field Acc Structure ID supports a distinct list of available Accounting Structures for the actual code part.

For Account, two structure definitions are supported:

Income Statement structure
Balance Sheet structure

For the other code parts B -> J only one accounting structure definition is supported.

In the GL model, the structures will appear as part of the associated code part table.

Note

The configuration is company-independent which means that the structure definitions in Accounting Rules need to be defined for all companies for which analysis/reporting based on accounting structures in the GL model is planned.

Accounting Attribute for Consolidation¶

The Group Consolidation model supports accounting attributes, a functionality in Accounting Rules that provides the possibility to group code part values and represent the group as an attribute value. One Attribute has several Attribute Values and each Attribute Value relates to one or more code part values.

One Attribute can be defined per code part, i.e. for Account and Code B to Code J.

Configuration is provided in the Accounting Attribute for Consolidation group.

The field Attribute needs to be set for the attribute definitions to be considered in the model. A list of Values supports a distinct list of available Attributes for the actual code part.

Note

The configuration is company-independent which means that the attribute definitions in Accounting Rules need to be defined for all companies for which analysis/reporting based on accounting attributes in the GC model is planned.

Accounting Structure for Consolidation¶

The Group Consolidation model supports accounting structures. The structures are defined in General Ledger where they are named Code Part Based Structures.

Configuration is provided in the Accounting Structure for Consolidation group.

List of Values for field Acc Structure ID supports a distinct list of available Accounting Structures for the actual code part.

For Account, two structure definitions are supported:

Income Statement structure
Balance Sheet structure

For the other code parts B -> J only one accounting structure definition is supported.

In the GC model, the structures will appear as part of the associated code part table.

Note

The configuration is company-independent which means that the structure definitions in Accounting Rules need to be defined for all companies for which analysis/reporting based on accounting structures in the GC model is planned.

Reverse Income¶

Amounts in Financials are handled according to standard accounting principles, meaning that a positive revenue is stored as a negative number. The way that amounts are stored is often not suitable for reporting and analysis scenarios.

The framework supports a way to configure amounts related to income statement accounts, i.e. costs, revenues and statistical accounts.

Configuration is provided in the **Reverse Income group.

The Source ID represents the name of a source table in either the GL or GC model.

By default, the Reverse Income Stmt is set to Yes.

Age Group Class¶

For the Human Capital Management model, it is required to choose one age group class for the Age Group dimension and this is handled by the configuration provided in the Age Group Class group.

The Source represents the area that the configuration applies to.

By default, the Age Group Class ID is defined as the template name .

The list of Values supports a list of available age group classes.

Employee Duration Class¶

For the Human Capital Management model it is required to choose one employee duration class for the Current Employment Duration dimension and this is handled by the configuration provided in the Employee Duration Class group.

The Source represents the area that the configuration applies to.

By default, the Employee Duration Class ID is defined as the template name .

A list of Values supports a list of available employee duration classes.

Organization Structure¶

The Human Capital Management model supports the possibility of using two Organization Structures.

The structures to be available in the model are configured using the Organization Structure group.

Two structures are can be configured.

Current Structure ID Mostly used as the regular structure within the organization. Available in the model via the table ANALYSIS STRUCTURE - CURRENT.
Alternative Structure ID This structure can be used for a matrix organization or to compare the current structure with a historical organization structure. Available in the model via the table ANALYSIS STRUCTURE - ALTERNATIVE.

The reference dates, Reference Date Current Structure and Reference Date Alternative Structure, can be used to configure if a structure should be extracted as it looked at the reference date. If no reference date is given, a structure is transferred as it looks at the time when transferred to the data storage.

Company Structure¶

The Cash Planning model and the General Ledger model both support company structures. The structures are defined on IFS Cloud Company Structure page. Configuration is provided in the Company Structure for Cash Planning and Company Structure for General Ledger groups.

Dataconfig_companyst_GL

In both models, the 3 structures can be selected for analysis and will appear in tables Company Structure 1, Company Structure 2 and Company Structure 3.
