Convert RDL Layouts to REP Layouts

If you are looking to leverage the functionality of Report Studio, you can easily convert the existing Report Designer Layouts (RDL) format to the newer Report Studio - Designer Layouts (REP) format. This conversion process is facilitated by the Layout Migration tool, ensuring a smooth transition for your reports.

The Layout Migration tool lets you effortlessly convert your RDL layouts to the new REP format. This painless process ensures your reports continue to function flawlessly while giving you access to Report Studio's advanced features.

Converting RDL layouts to REP layouts using the Layout Migration Tool

Please refer to the prerequisites detailed in the installation guide for the layout migration tool.

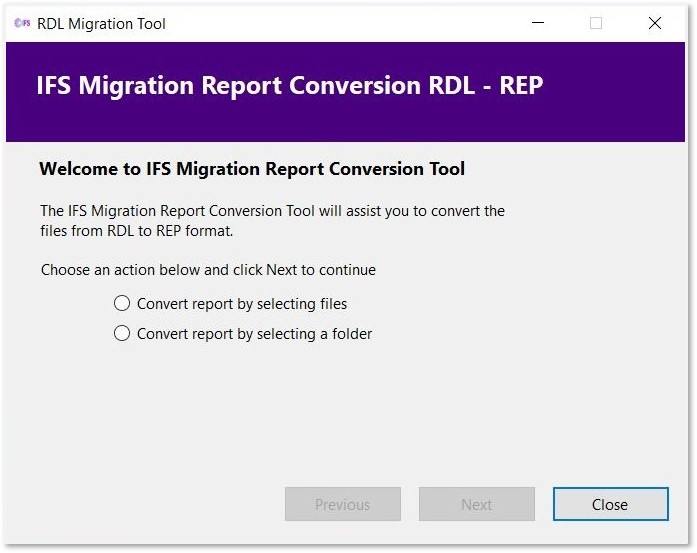

The Layout Migration Tool offers two convenient ways to convert your reports:

  • Convert by Selecting Files: Choose individual RDL layout files for conversion from different folders. This option provides granular control over which reports you want to convert.
  • Convert by Selecting a Folder: Select a folder containing multiple RDL layout files. This method is ideal for bulk conversions, saving you time and effort.

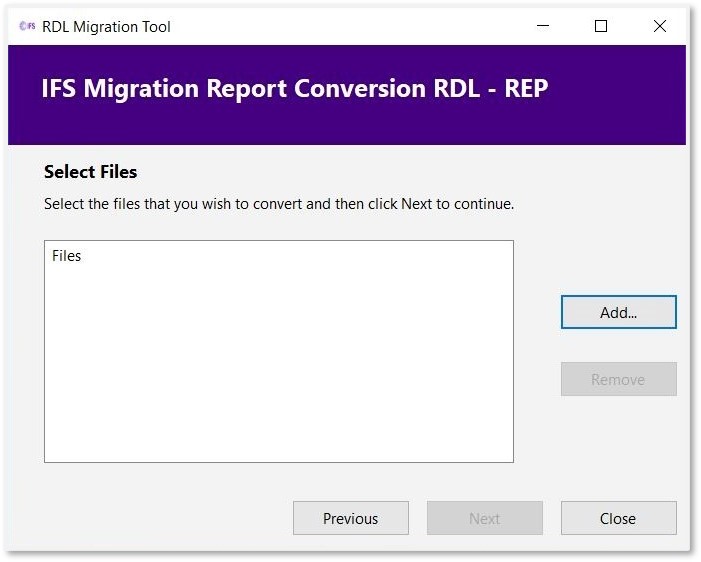

Convert by Selecting Files:

Selecting the option Convert Report by selecting files allows you to upload specific RDL layouts you want to convert. This interface will provide you with a user-friendly way to browse your files and select the individual RDL reports you need to migrate to the REP format. You can specify the RDL files from different folders.

Convert by Selecting a Folder (Bulk Conversion):

If you have a large number of RDL layouts to convert, choosing Convert Report by selecting a folder is the most efficient option. Simply select the folder containing your RDL reports, and the Layout Migration Tool will handle all the files within that folder. This method saves you time and effort compared to selecting individual files one by one.

Once you have specified the location of your RDL layouts (either a single file or a folder), click Next to initiate the conversion process. The following outputs will be delivered as a result of this action:

  • A new folder named ConvertedFiles will be automatically created in the location you specified.
  • All successfully converted REP layouts will be saved within this new ConvertedFiles folder.
  • A detailed Conversion Log file will also be available at the same location as well as the home directory of the tool. This log file provides information about the conversion process, including any errors or warnings encountered.
  • Uploading RDL files from separate folders will generate individual log files within each folder.

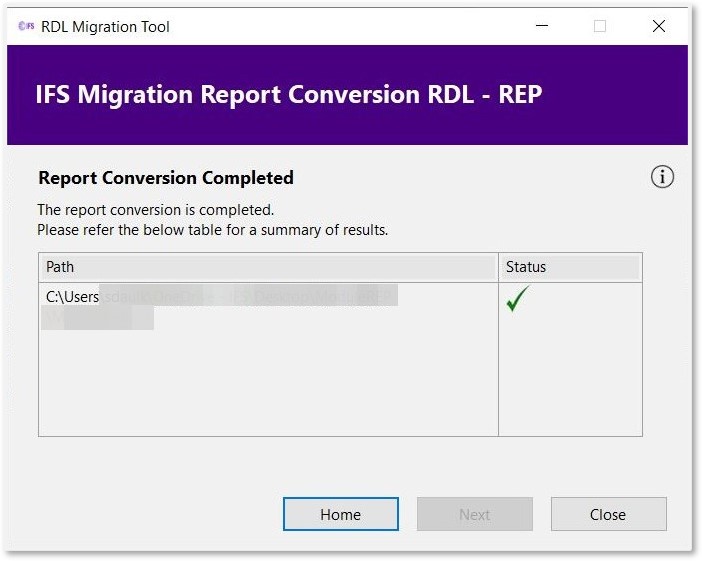

Once the Layout Migration Tool finishes converting your RDL layouts, you'll see a confirmation summary as follows:
